Clutch Fitting To M10x1 Female

Clutch Fitting to M10x1 Female – Stainless Steel Braided Hose Fitting

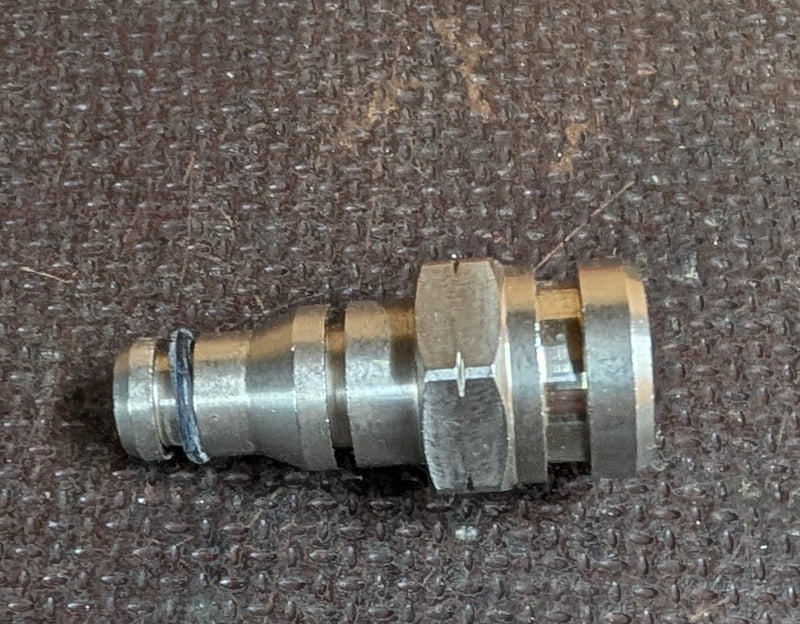

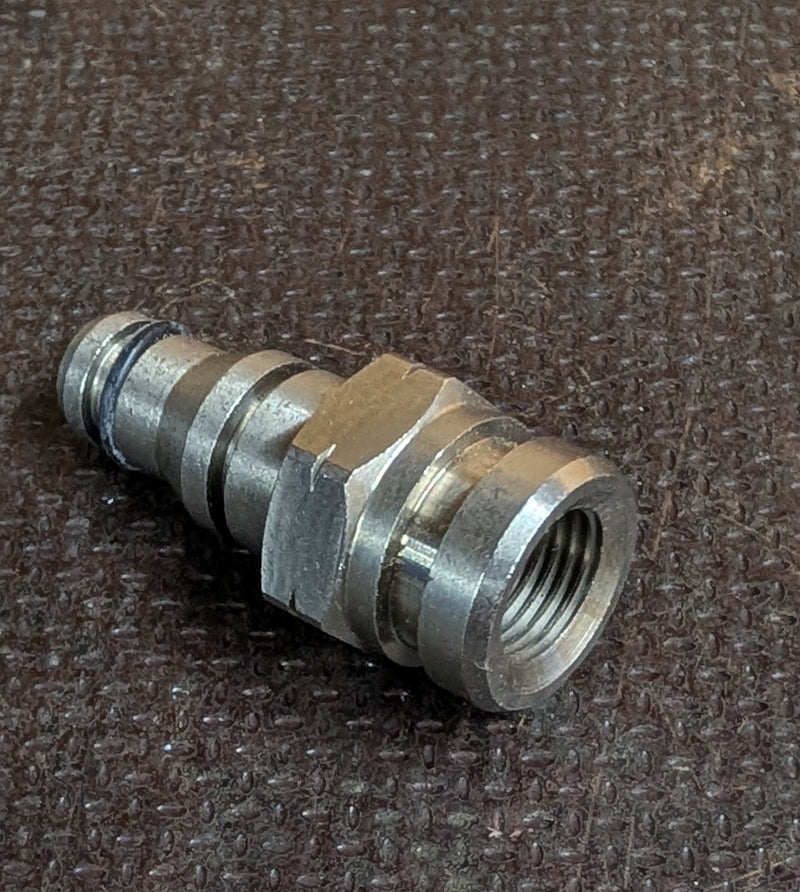

The clutch fitting to M10x1 female is a dual-end stainless steel fitting designed for braided clutch hose builds where one end uses a push-in clutch fitting and the other connects to an M10x1 female threaded port. This allows a single braided hose or pipe to bridge between a push-in clutch slave or master cylinder port and an M10x1 threaded connection.

Check the dimensions below against your existing fitting before ordering to confirm correct fitment.

Specification

• Small End O/D: 9.0mm
• Large End O/D: 11.7mm
• Distance from Tip to Hex Face: 22mm
• Thread (Female End): M10 x 1.0
• Material: Stainless Steel (303/304)
• Compatible with: AN3 (-3 AN, Dash 3) braided hose

Pair with our full range of brake and clutch fittings or use our Custom Brake Hose Builder to spec a complete kit.
