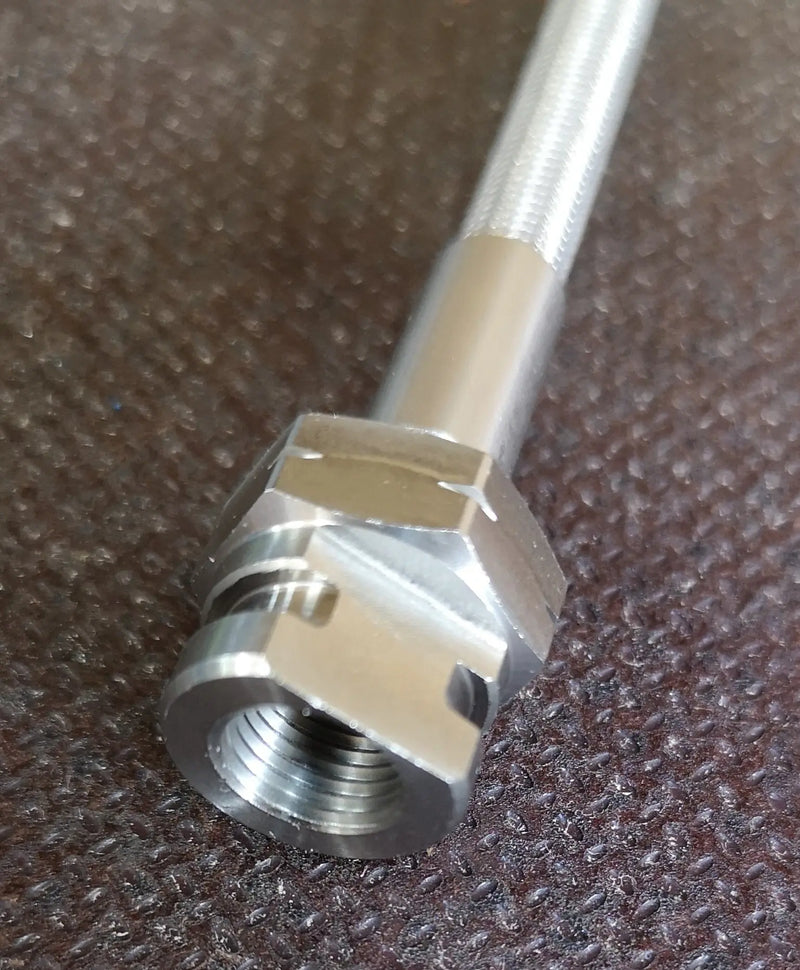

M10x1 Female Circlip Groove With Milled Flat – Stainless Steel Brake Hose Fitting

The M10x1 female circlip groove fitting with milled flat is a specialist brake hose end combining circlip bulkhead retention with a milled flat on the body. The milled flat preventing rotation and making installation significantly easier

The circlip groove locks the fitting through the panel without a lock nut, and the M10x1 female thread connects to standard male M10x1 brake ports. Straight only.

Specification

• Thread: M10 x 1.0 (Female)
• Type: Circlip Groove with Milled Flat Concave Seat (Straight)
• Material: Stainless Steel (303/304)
• Compatible with: AN3 (-3 AN, Dash 3) braided brake hose
• Includes ferrule

Also available without milled flat: M10x1 Circlip Groove Swivel Female 17mm Hex and 19mm Hex. Pair with our full range of brake fittings or use our Custom Brake Hose Builder to spec a complete kit.
