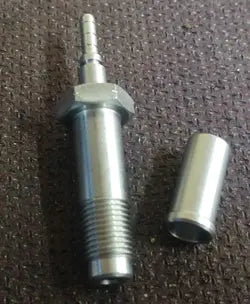

M10x1 Extended Fixed Male Bulkhead – Stainless Steel Brake Hose Fitting

The M10x1 extended fixed male bulkhead offers additional thread length over the standard bulkhead fitting, making it the ideal choice for thicker panels, firewalls, or chassis sections where a standard fitting won't reach. Precision-machined from stainless steel and compatible with AN3 braided brake hose, it delivers a clean, secure brake line pass-through for race, rally, and performance builds.

Specification

• Thread: M10 x 1.0
• Type: Extended Fixed Male Bulkhead (Straight)
• Hex to Tip: 32mm
• Hex to Thread: 18mm
• Material: Stainless Steel (303/304)
• Compatible with: AN3 (-3 AN, Dash 3) braided brake hose
• Includes ferrule
• Lock nut listed separately

Pair with our full range of brake fittings or use our Custom Brake Hose Builder to spec a complete kit.
