BRT Motorsport Braided Brake Hose
Upgrade your braking system with our stainless steel braided brake hose — engineered for performance vehicles where reliability under pressure is non-negotiable. The PTFE smooth bore inner eliminates expansion under load, delivering a firmer, more responsive pedal feel every time you brake hard.

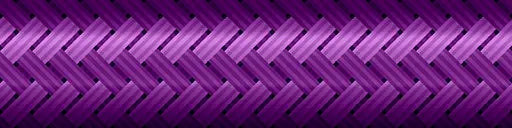

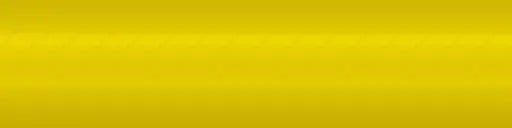

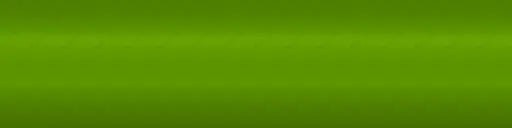

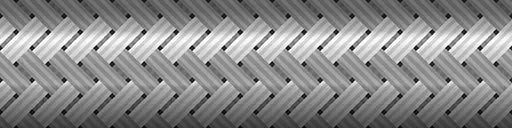

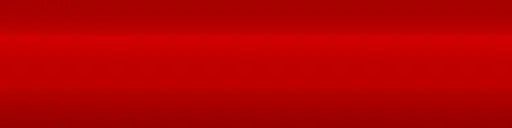

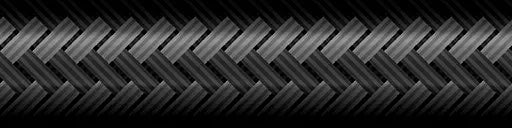

Available in 9 colours including Clear Braid, Carbon, and classic Black. Need a specific length or fitting configuration? Use our Custom Brake Hose Builder or contact us for vehicle-specific kits.
Specification
| Maximum Operating Pressure | 4206 PSI (290 BAR) |
| Burst Pressure | 12618 PSI (870 BAR) |
| Minimum Bend Radius | 19mm (0.7") |
| Outer Hose Material | Stainless Steel Braiding (PVC coated, wipe-clean) |
| Inner Hose Material | PTFE Smooth Bore |
| Inner Diameter (ID) | 3mm (1/8") |
| Outer Diameter (OD) | 8mm (5/16") |
| Hose Size | AN3 (-3 AN, Dash 3) |
| Fittings Material | Stainless Steel (303/304) |
| Operating Temperature | -70°C to 250°C (-94°F to 482°F) |
| Fluid Compatibility |
Fuels: Petrol (E5, E10), Ethanol (E85), Methanol, Race Fuels, Diesel Oils: Engine Oil, Hydraulic Oil Gases: Air, CO2, Nitrous Oxide (N2O) Fluids: Coolant, Water, Brake & Clutch Fluid |
