Battery Cable Eyelet Crimp Terminals - 16mm² & 25mm²
Description

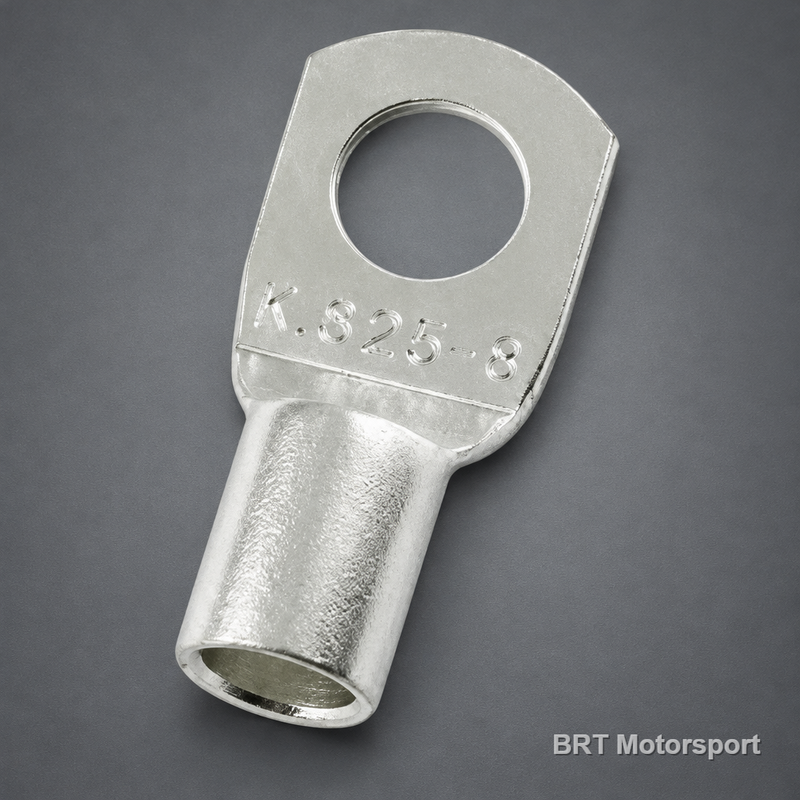

Battery Cable Eyelet Crimp Terminals
Eyelet crimp terminals for terminating battery cable at suitable bolted connections. Choose the terminal to match both your cable cross-sectional size and the mounting stud, with 16mm² and 25mm² options available.
Cable Size Compatibility
- 16mm² eyelet crimp terminals: for 16mm² battery cable
- 25mm² eyelet crimp terminals: for 25mm² battery cable
Available Options
- 16mm²: M6, M8 or M10 eyelet options
- 16mm² 90° angled: M6, M8 or M10 eyelet options
- 25mm²: M6, M8 or M10 eyelet options
Choosing the Correct Terminal
The cable size and eyelet size are separate specifications. For example, a 16mm² M8 terminal is for 16mm² cable and an M8 mounting stud. Match both specifications before ordering.

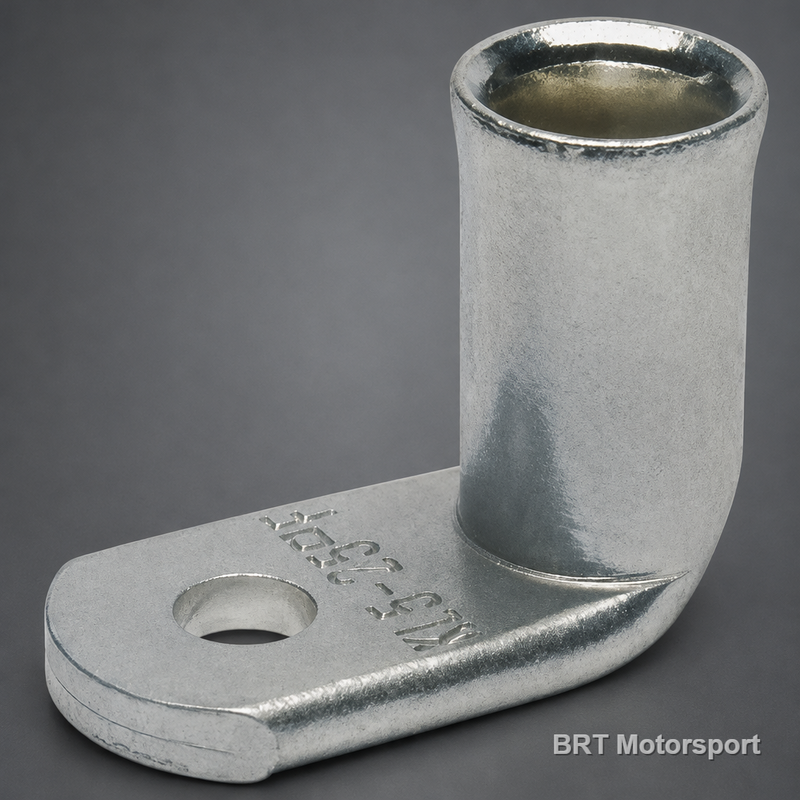

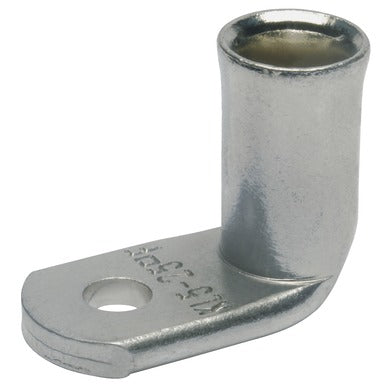

The 90° angled options provide an alternative cable exit direction where your installation requires it. Check clearance and cable routing before selecting an angled terminal.
Installation
Use a suitable crimping tool and die for the terminal and cable size, following the terminal manufacturer's instructions. Check that the finished connection is secure and insulate exposed areas as required by the installation. Professional installation is recommended for high-current battery wiring.
For a custom battery cable, please visit our Battery Cable Builder.
