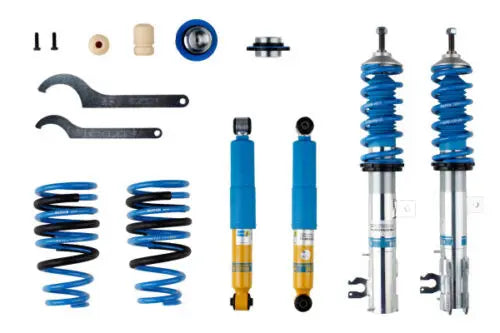

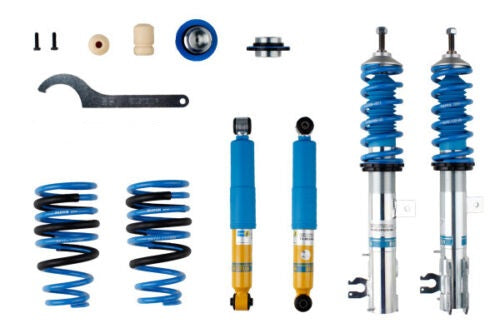

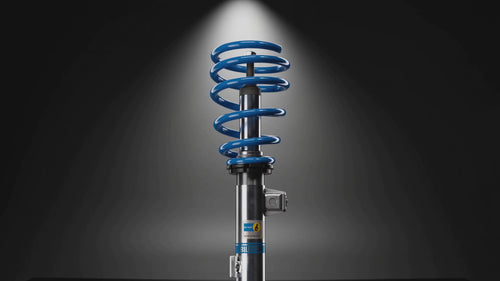

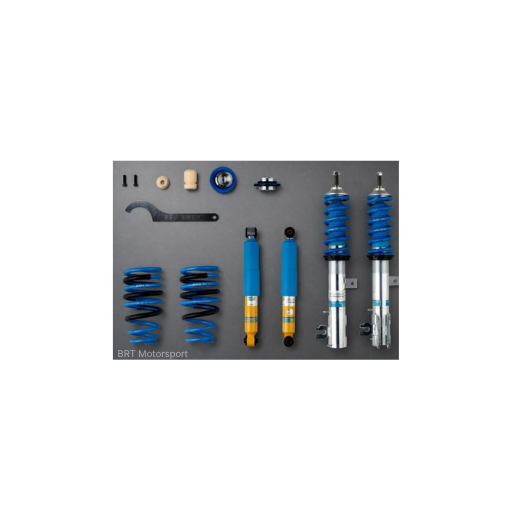

Abarth 500 / 595 Bilstein B14 Coilover Kit — Height Adjustable

The Bilstein B14 is a complete height-adjustable coilover suspension kit for the Abarth 500 and 595, bringing motorsport-derived damper technology to the road. Developed and road-tested by Bilstein under motorsport conditions, the B14 combines Bilstein’s renowned mono-tube gas pressure damper technology with threaded ride height adjustment at both axles — delivering a significant improvement in handling, body control, and stance over the OEM suspension setup.

Key Specifications

• Fitment: Abarth 500 and 595
• Kit Contents: Complete front and rear coilover kit
• Ride Height Adjustment: threaded adjustment range at both axles (adjustable while installed)
• Lowering Range: 20–40mm front and rear
• Damper Technology: Bilstein mono-tube gas pressure
• Spring Material: High-durability sport springs
• Spring Plates & Lock Nuts: Special aluminium alloy
• Corrosion Protection: Triple-C-Technology® surface coating
• Thread Type: Round thread for ease of adjustment
• Manufactured: Made in Germany
• Warranty: 2 years from date of purchase

Why Choose the Bilstein B14?

The B14 is Bilstein’s entry-level coilover kit, but it’s built to the same exacting standards as their motorsport components. The mono-tube gas pressure damper design provides more consistent damping performance than twin-tube alternatives, with better heat dissipation under sustained hard driving. The threaded body allows precise ride height adjustment without removing the suspension from the car, and the 20–40mm lowering range lowers the centre of gravity for improved cornering performance and a more aggressive stance — while remaining fully road legal and comfortable for daily use.

Key Benefits

• Significant handling and body control improvement over OEM suspension
• Threaded ride height adjustment — adjustable while installed
• 20–40mm lowering at front and rear
• Bilstein mono-tube gas pressure technology for consistent damping
• Motorsport-developed and road-tested by Bilstein
• Triple-C-Technology® corrosion protection for long-term durability
• Made in Germany
• 2-year warranty

Fitment & Compatibility

Designed as a complete suspension kit for the Abarth 500 and 595. Professional installation by a qualified suspension specialist is strongly recommended. Wheel alignment should be checked and adjusted after fitting. For other Abarth suspension options, see our full Abarth Suspension range.
