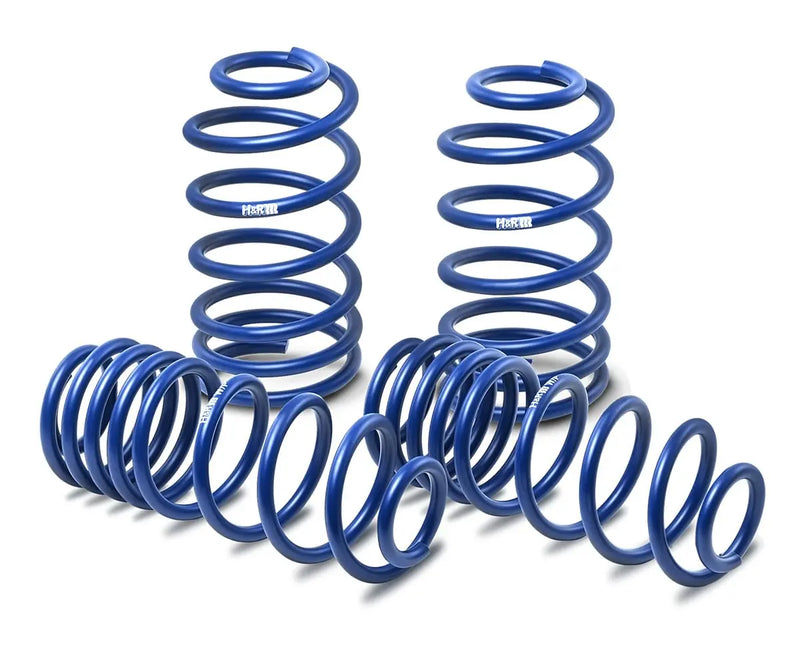

Abarth 500 / 595 / 695 H&R Lowering Springs - Set of 4
H&R progressive lowering springs for the Abarth 500, 595, and 695, supplied as a complete set of four. Developed and manufactured in Lennestadt, Germany, H&R springs are precision-tuned to work with the Abarth 500/595/695 platform — lowering the centre of gravity for improved handling, sharper cornering, and a sportier stance, while retaining everyday ride comfort. Compatible with standard OEM shock absorbers and electronically controlled or active suspension systems.
Key Specifications
- Fitment: Abarth 500, 595, and 695 / Fiat 500
- Supplied: Complete set of 4 springs (front and rear)
- Front Lowering: 25–30mm
- Rear Lowering: 30–35mm
- Minimum Front Axle Load: 770kg
- Spring Type: Progressive rate
- Material: Hardened and tempered spring steel
- Surface Treatment: Zinc phosphating and powder coating (H&R Blue)
- Manufactured: Made in Germany — Lennestadt
- Warranty: 2 years
H&R Spring Features
- Progressive Spring Rate — softer initial rate for everyday comfort, progressively firmer under load for improved body control and cornering stability
- Sporty Stance — 25–35mm lowering lowers the centre of gravity for sharper turn-in and reduced body roll
- OEM Damper Compatible — tuned to work with standard shock absorbers; no damper replacement required for road use
- Active Suspension Compatible — compatible with electronically controlled shock absorbers and active suspension systems
- German Engineering — developed and manufactured in Lennestadt, Germany to exacting tolerances
- Weather Resistant — zinc phosphating and powder coating for long-term corrosion resistance
- 2-year warranty
Damper Compatibility & Recommendations
H&R lowering springs can be used with standard OEM shock absorbers for a cost-effective handling and stance upgrade. However, for best results — particularly for track day or performance use — pairing with uprated dampers is recommended. These springs are also supplied as part of our complete Bilstein B12 H&R Kit (BRT1177), which includes matched Bilstein dampers for a fully optimised setup.
- OEM dampers: Compatible — suitable for road use
- Bilstein B4: Compatible — improved OEM-quality replacement
- Bilstein B6: Compatible — recommended for performance road use
- Bilstein B8 Sprint: Ideal pairing — B8 Sprint is designed specifically for use with lowering springs
- Bilstein B12 H&R Kit (BRT1177): Complete matched kit — includes these springs with Bilstein dampers
Fitment & Compatibility
Designed for the Abarth 500, 595, and 695, and also compatible with the Fiat 500. Professional installation by a qualified suspension specialist is strongly recommended. Wheel alignment must be checked and adjusted after fitting. For a complete matched damper and spring kit, see our Bilstein B12 H&R Kit (BRT1177).
Why Choose BRT Motorsport?
Specialists in Abarth performance and motorsport parts. Quality suspension components for Abarth 500, 595, and 695 from BRT Motorsport.
