Abarth 500 / 595 / 695 Bilstein B12 & H&R Lowering Spring Kit

Transform your Abarth’s handling without sacrificing daily usability. The Bilstein B12 H&R Kit pairs Bilstein’s renowned inverted mono-tube dampers with progressive H&R lowering springs — engineered specifically for the Abarth 500, 595, and 695 platform. The result is a sharper, more planted driving experience that feels at home on both B-roads and track days, with a fixed lowering setup that requires no ongoing adjustment.

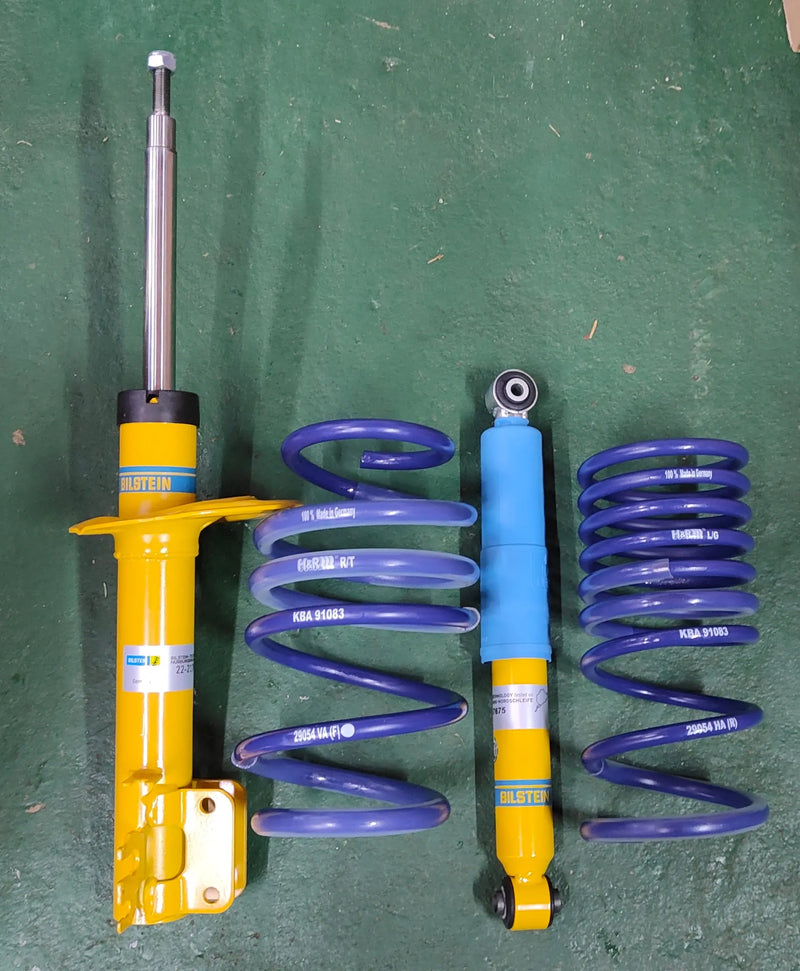

Kit Contents

• 2 x Bilstein front shock absorbers (inverted mono-tube)
• 2 x Bilstein rear shock absorbers
• H&R progressive lowering spring kit
• Lowered rear bump stops

Key Specifications

• Fitment: Abarth 500, 595, 695 / Fiat 500 & 500C
• Front Lowering: 25–30mm
• Rear Lowering: 30–35mm
• Damper Technology: Bilstein inverted mono-tube, gas-pressurised
• Springs: H&R progressive rate lowering springs
• Top Mounts: Compatible with original OEM top mounts — no additional hardware required
• Warranty: 2 years from date of purchase

Kit Highlights

• Bilstein inverted mono-tube dampers — superior heat dissipation and consistent damping under sustained load
• H&R progressive springs — improved body control and ride refinement over standard springs
• Gas-pressurised internal oil for consistent performance
• Lower centre of gravity for sharper turn-in and reduced body roll
• Compatible with OEM top mounts — no additional hardware required
• Improved damping performance over standard OEM dampers
• Made in Germany

B12 vs B14 — Which Kit is Right for You?

• Bilstein B12 (this kit): Fixed lowering with H&R progressive springs. A complete, matched damper and spring package with a set lowering range. Ideal for drivers who want a significant handling and stance upgrade without the need for ongoing ride height adjustment.
• Bilstein B14: Threaded coilover kit with adjustable ride height (20–40mm range, adjustable while installed). Ideal for drivers who want the flexibility to fine-tune ride height for different uses — track days, shows, or seasonal adjustment. See our Abarth 500/595 Bilstein B14 Coilover Kit (BRT1012).

Fitment & Compatibility

Designed for the Abarth 500, 595, and 695, and also compatible with the Fiat 500 and 500C. Professional installation by a qualified suspension specialist is strongly recommended. Wheel alignment should be checked and adjusted after fitting.
