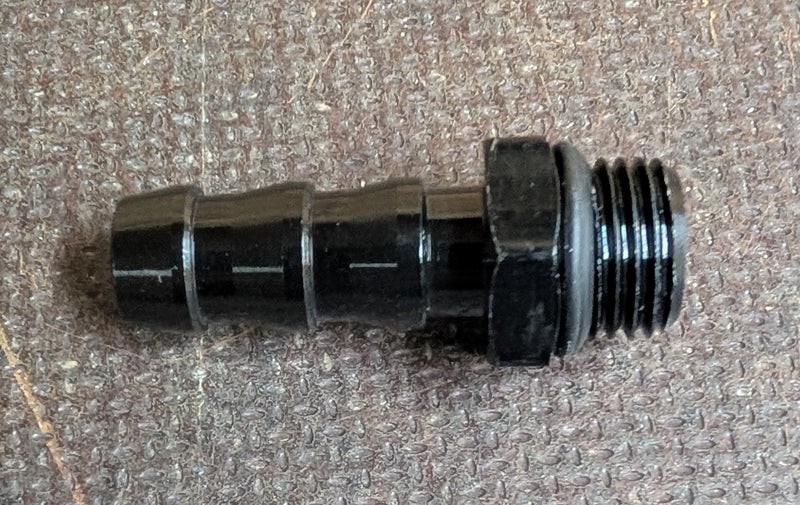

ORB6 To 1/2" Hose Barb

ORB-6 to 1/2" Hose Barb Fitting — Black Anodised Alloy

A black anodised alloy adapter fitting with an ORB-6 (O-Ring Boss, -6) male end and a 1/2" hose barb outlet. The ORB-6 end uses an O-ring face seal rather than a JIC flare — providing a leak-free seal at the port. The 1/2" hose barb outlet accepts standard 1/2" (12.7mm) internal diameter push-on rubber or silicone hose, allowing ORB-6 ported components to be connected to non-AN rubber or silicone hose runs.

Commonly used on oil system components, coolant connections, and other ORB-ported housings where a transition to push-on hose is required.

Key Features

• ORB-6 O-Ring Boss End: O-ring face seal provides a leak-free connection ideal for ORB-ported components such as oil filter housings, coolers, and pumps
• 1/2" Hose Barb Outlet: Accepts standard 1/2" (12.7mm) ID push-on rubber or silicone hose — bridges ORB-ported components to non-AN hose runs
• Black Anodised Alloy: Lightweight, corrosion resistant, and a clean stealth finish
• Common Applications: Oil system connections, coolant lines, breather lines, and catch tank connections on ORB-6 ported components

Specification

Material: Black Anodised Alloy
ORB End: ORB-6 (O-Ring Boss, -6) Male
Barb End: 1/2" (12.7mm) hose barb

Note: ORB fittings use an O-ring for sealing — ensure the O-ring is correctly seated before installation. Always secure hose barb connections with a suitable hose clamp to ensure a leak-free installation under pressure.
