AN6 90° Bulkhead Fitting

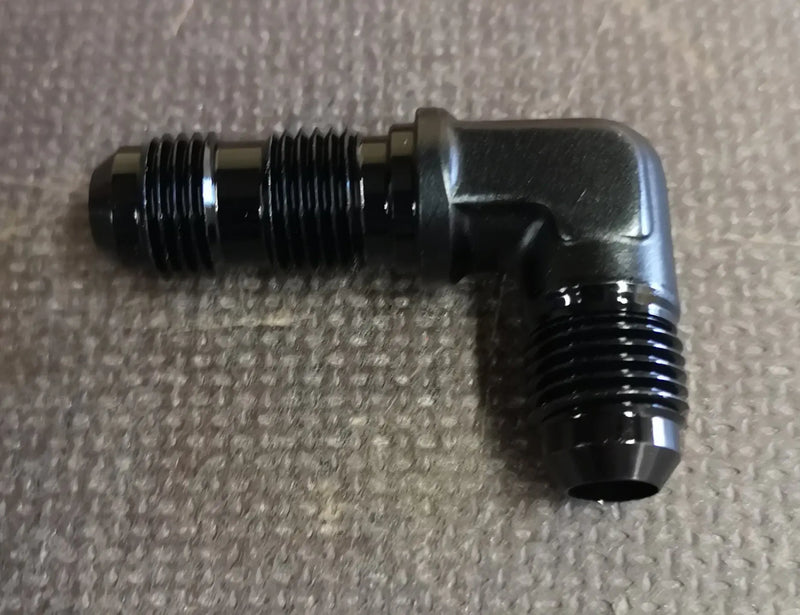

AN-6 90° Bulkhead Fitting — Anodised Alloy

An anodised alloy AN-6 (-6) 90° bulkhead fitting for passing an AN-6 hose line through a panel, firewall, or bulkhead where the hose needs to exit at a right angle to the panel surface. The 90° design eliminates the need for a separate elbow fitting on one side of the bulkhead, reducing the number of connections and improving hose routing in tight spaces. Secured with a lock nut (listed separately). Commonly used for routing fuel lines through firewalls and boot floors where space is limited and a straight bulkhead fitting would require an additional elbow.

Key Features

• 90° Bulkhead Design: Hose exits at a right angle to the panel surface — eliminates the need for a separate elbow on one side, reducing connections and saving space
• AN-6 (-6) Fitting: Compatible with standard AN-6 female hose end fittings
• Anodised Alloy Construction: Lightweight and corrosion resistant — suitable for fuel, oil, and fluid line applications
• Common Applications: Firewall fuel line pass-throughs in tight spaces, boot floor routing, surge tank and swirl pot connections where hose direction change is required at the panel

Specification

Material: Anodised Alloy
Fitting Size: AN-6 (-6)
Angle: 90°
Configuration: Bulkhead / panel mount

Note: Lock nut required for installation — listed separately. Ensure the panel hole diameter is correct for the bulkhead fitting before installation.
